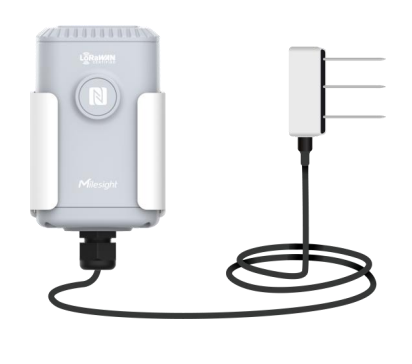

Soil Moisture Temperature and Electrical Condunctivity Sensor- EM500-SMTC

DATASHEET

EM500-SMTC is designed for measuring soil moisture, temperature and electrical conductivity in harsh environments and
transmitting data using LoRaWAN® technology. With this low
power consumption technology, EM500-SMTC can work up to 10
years with 19000 mAh battery. Combining with Milesight
LoRaWAN® gateway and Milesight IoT Cloud solution, users can
manage all sensor data remotely and visually. EM500-SMTC is widely used for outdoor applications like smart
agriculture, smart horticulture, etc.

 Features
 High precision for multiple kinds of soil
 Corrosion resistance and tough probe
 Ultra-wide-distance transmission up to line of sight of 10km
 IP67 waterproof enclosure for harsh environment applications
 Built-in 19000 mAh replaceable battery and work for 10 years
without replacement
 Equipped with NFC for easy configuration
 Compliant with standard LoRaWAN
® gateways and network
servers
 Quick and easy management with Milesight IoT Cloud and
Milesight Development Platform solution

 Applications
 Irrigation Control
 Greenhouse control
 Smart agriculture
 Smart horticulture
 Golf course maintenance

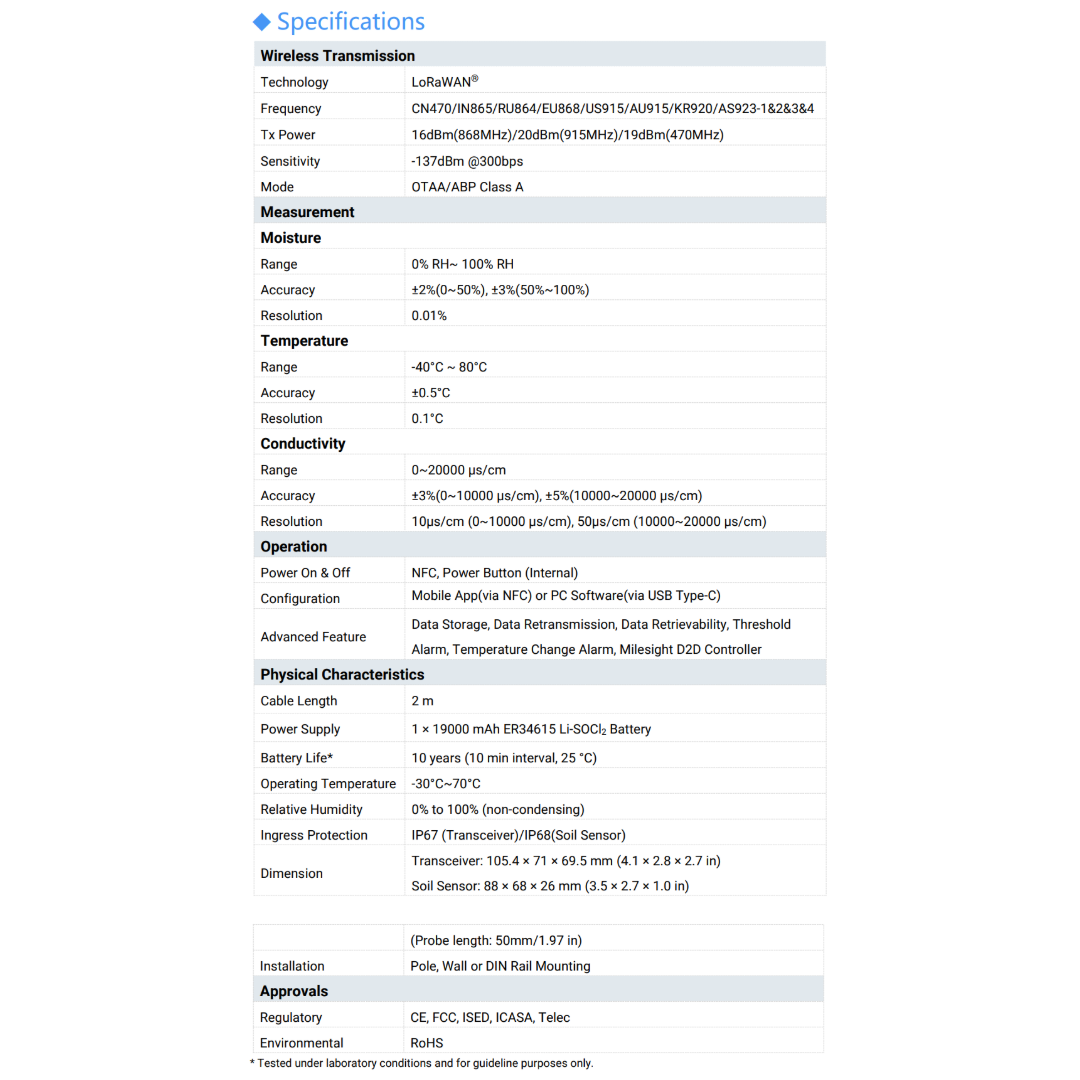

Temperature: -40°C ~ 80°C

Moisture: 0% ~ 100% RH

Electrical Conductivity:

0 ~ 20000 µs/cm

Transceiver: IP67 Sensor: IP68

1 * 19000mAh Li-SOCL2 Battery Battery Life: 10 Years (10 min Interval) Resolution: 0.01% NFC Enabled Cable Length: 2m (Customizable)

US$3.00 dollars for one meter extension cable.
