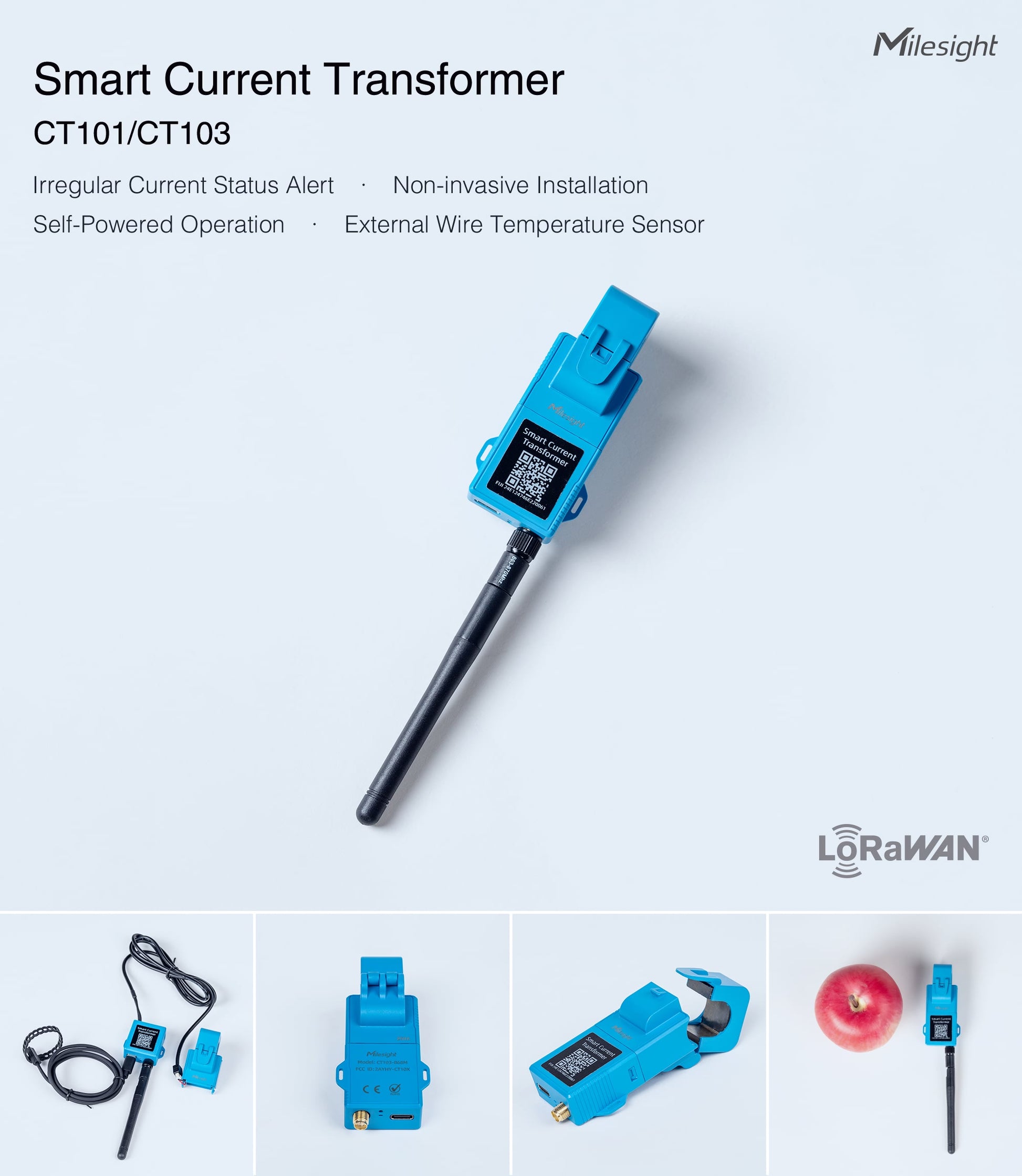

Smart current transformer: CT101 CT103, CT105

DATASHEET

CT10x is a LoRaWAN® Smart Current Transformer for monitoring the energy and analyzing consumption remotely.

CT10x provides multiple current options to suit energy monitoring and
support sending threshold alarms.

CT10x is detachable, the compact size and clamp design allow it to be installed in any indoor space quickly and safely without de-energizing a facility, simplifying the installation and saving the cost. Compliant with Milesight LoRaWAN® gateway and Milesight development Platform solution,

 CT10x can be monitored via webpage remotely.

CT10x is widely used for energy motoring of smart buildings, machine failure detection and
prevention, etc.

 Features
 Report the RMS current and accumulated current data by minutes
 High measuring accuracy with a sampling frequency of up to 3.3 kHz
 Self-powered, free from batteries or external wires
 Utilize a sampling rate of up to 1s for real-time monitoring and quick alarm response
 Compact size allows for installation in narrow scenarios
 Support flexible detachable design to accommodate various installation environments
 Non-invasive clamp design ensures easy and safe installation without the need for power
de-energizing
 Equipped with LED indicator to indicate working status and alarms
 Support to connect to a temperature sensor via USB for cable temperature measurement
 Compliant with standard LoRaWAN® gateways and network servers
 Compliant with Milesight Development Platform
 Support Firmware Update Over the Air (FUOTA) via Milesight Development Platform
