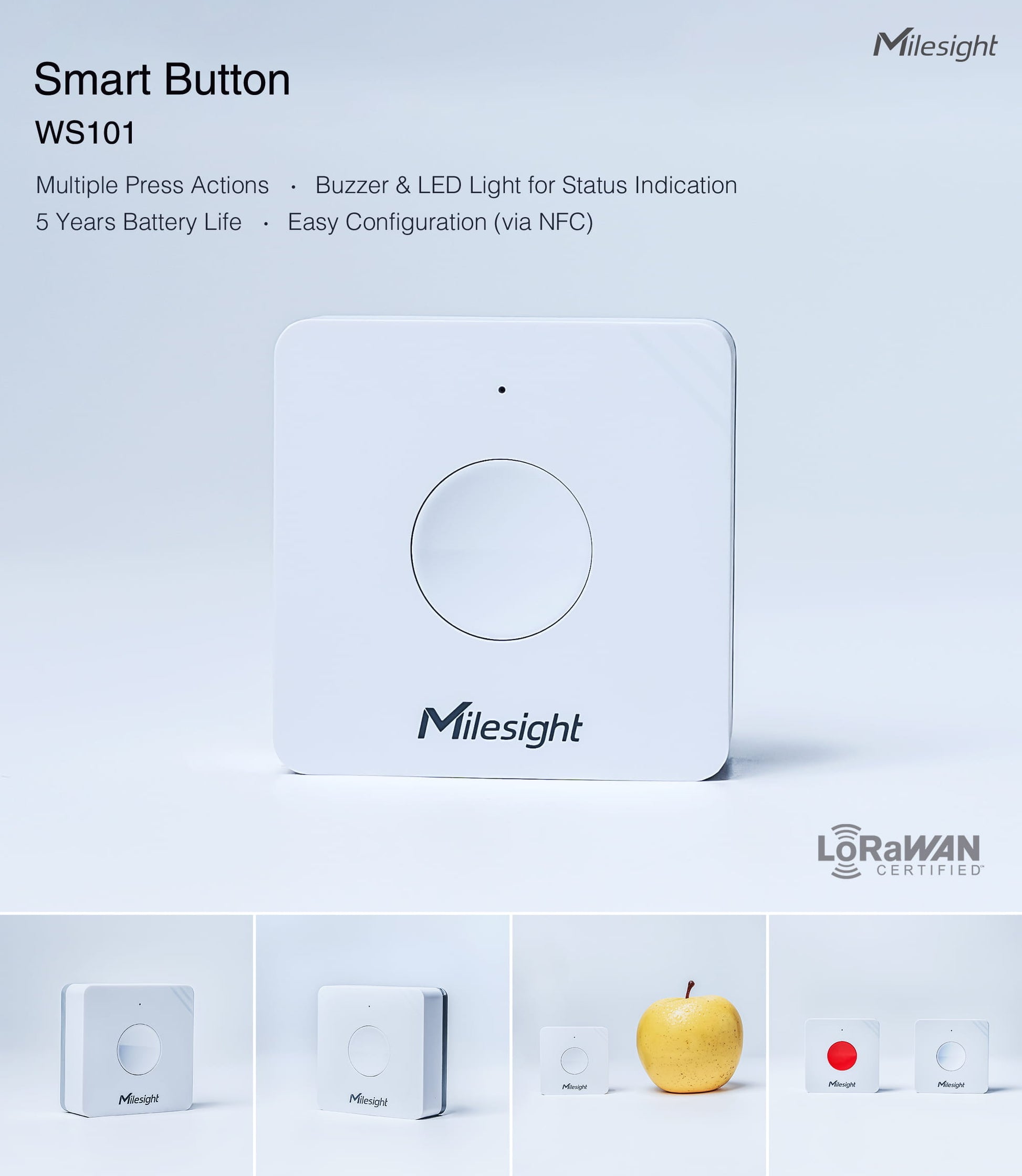

Smart Button: WS101

DATASHEET

Milesight WS101 is a LoRaWAN®-based smart button for wireless controls, triggers and alarms. WS101 supports multiple press actions, all of which can be defined by the user to control devices or trigger scenes.

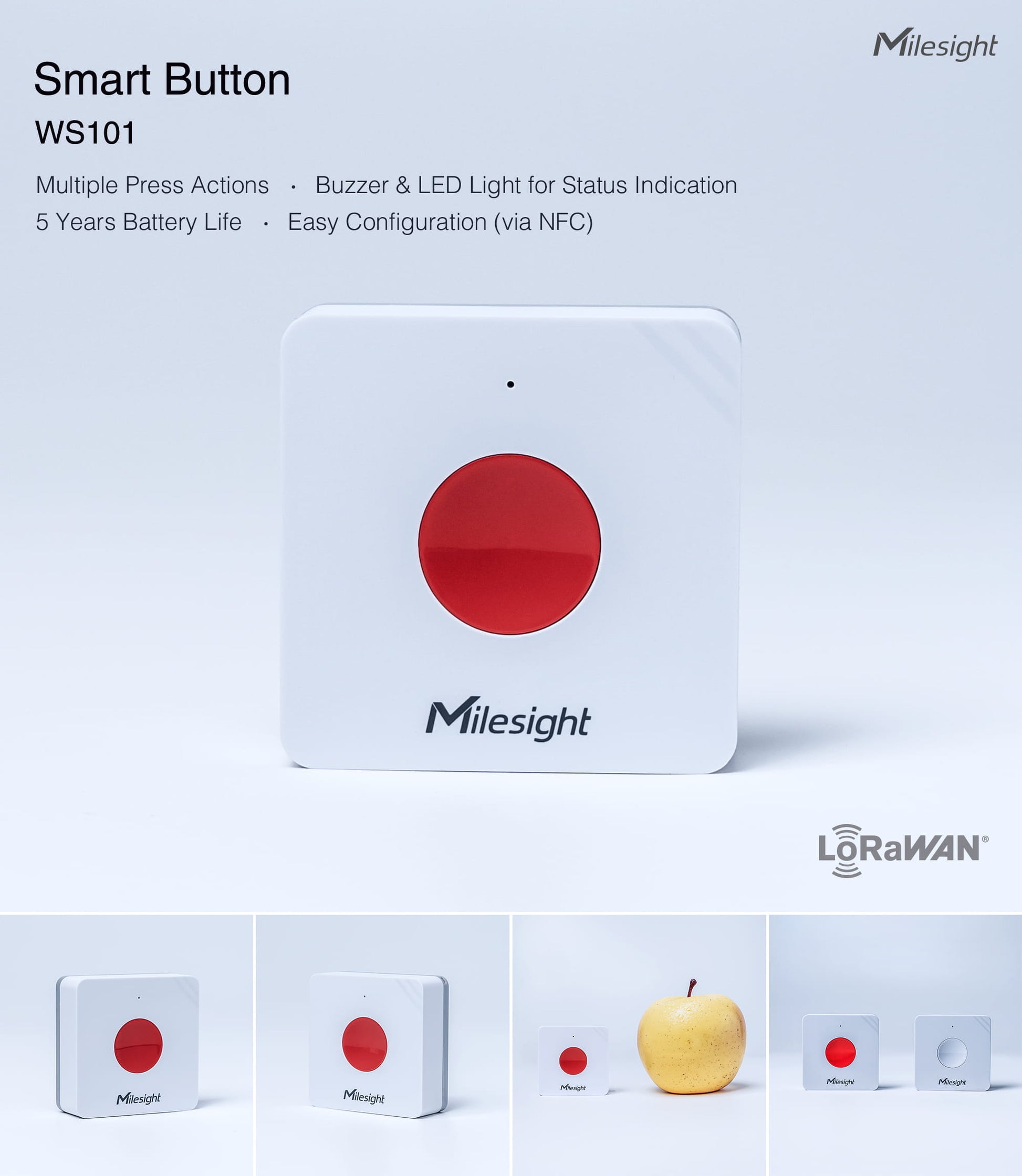

Besides, Milesight also provides a red button that
is primarily used to send SOS alarms. Compact and battery-powered, WS101 is easy to install and carry everywhere.

 Compliant with Milesight LoRaWAN® gateways and Milesight IoT Cloud solutions, users can know the alarms and use the WS101 to easily trigger other sensors or appliances remotely via web or mobile Apps. WS101 can be widely used in smart homes, smart offices, hotels, schools, etc.

 Features
 Support multiple press actions to control devices, trigger a scene or send emergency alarms
 Easily to install or carry with the convenient size
 Built-in LED indicator and buzzer for press actions, network status, low battery indication
 Ultra-wide-distance wireless transmission: 15 km in line of sight scene
 Equipped with NFC for one-touch configuration and support card emulation mode
 Support Milesight LoRa D2D protocol to enable ultra-low latency and directly control without
gateway

 Function well with standard LoRaWAN® gateways and network servers
 Compliant with Milesight

1 * 1650 mAh Li-SOCL2 Battery Battery Life: Over 5 Years (1080 min Interval + 10 Presses per Day) Advanced Features: Milesight D2D Controller NFC Enabled IP30 Rated
