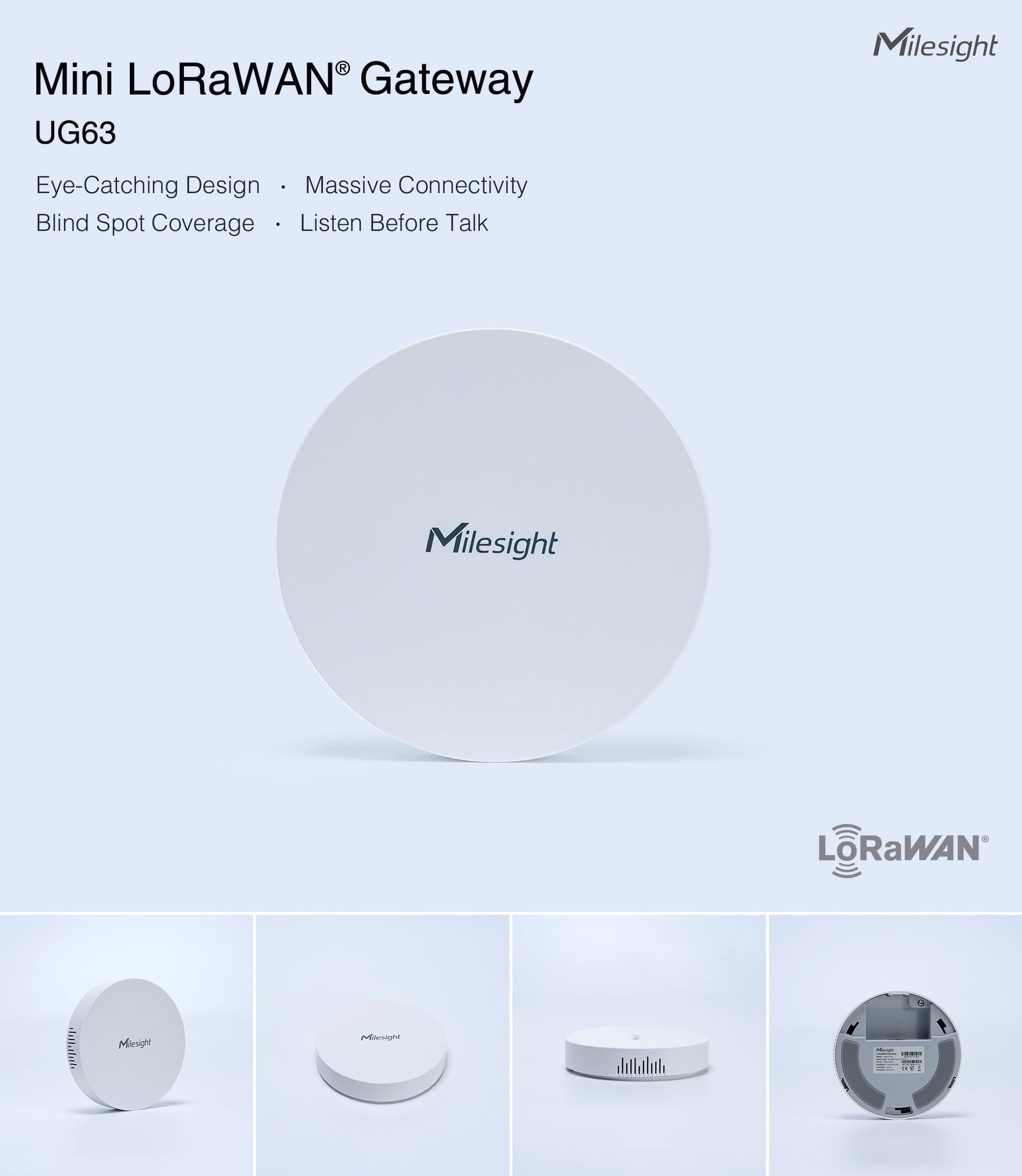

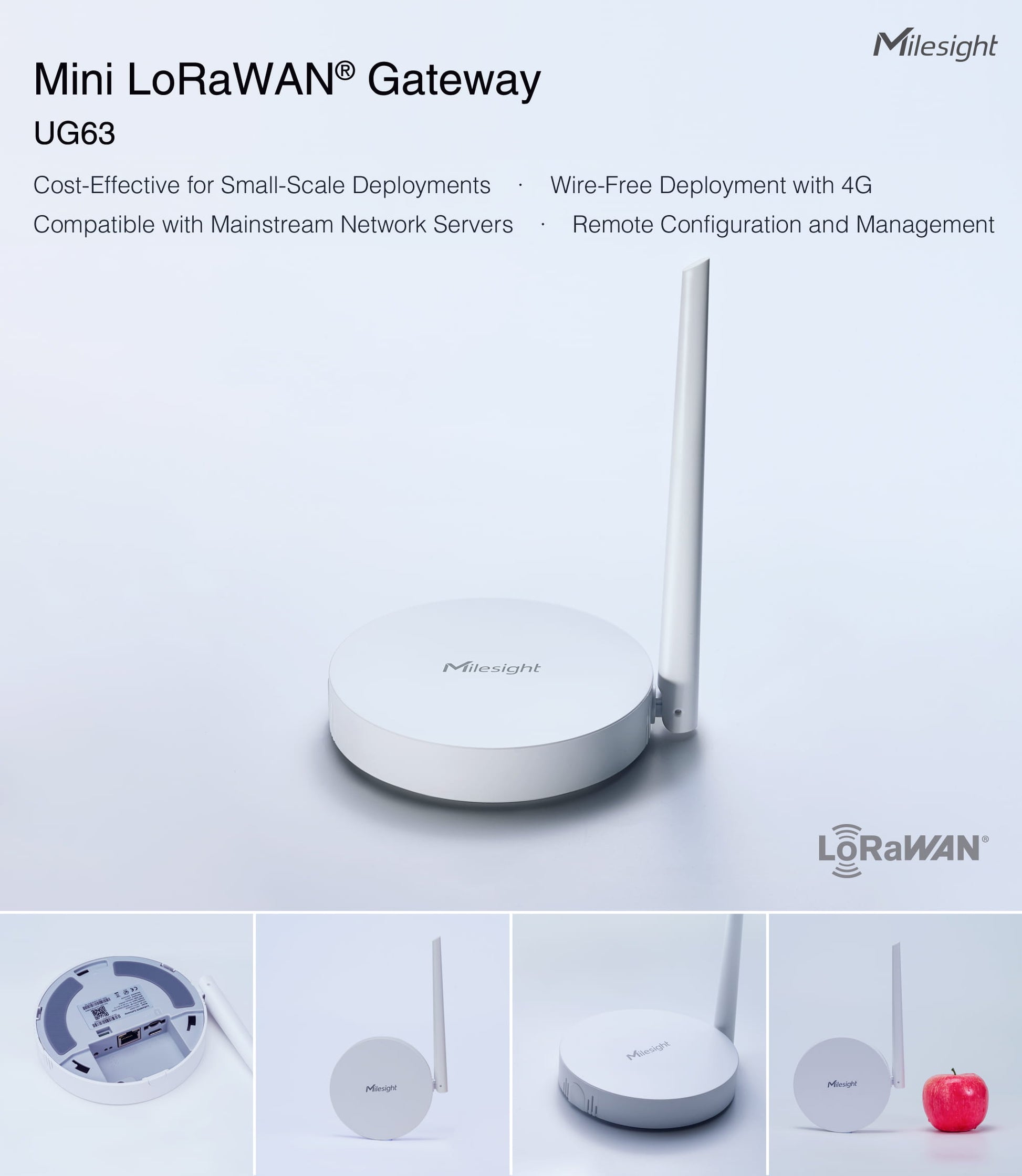

Mini LoRaWAN® Gateway: UG63

DATASHEET

UG63 is a 8-channel lightweight indoor LoRaWAN® gateway. Adopting, SX1302 chip, UG63 can set up packet forwarding connection between end nodes and mainstream network servers (such as The Thing Network, Chirpstack, etc.).

With its compact size and high performance, it is highly suitable for independent deployment of LoRaWAN® networks in small-scale scenarios or single spaces. It can also serve as a supplementary gateway, along with UG56/UG65/UG67 gateways, to enhance LoRaWAN® signal coverage in large-scale scenarios by filling in signal blind spots. it is an ideal supplement for wide indoor areas such as office, parking lots, campuses, etc.

 Features
 Equip with SX1302 chip, handing a higher amount of traffic with lower consumption
 8 half-duplex channels for more than 2000 end-nodes connections
 Small in size for easy carrying & deployment
 Desktop, wall or ceiling mounting support
 Multi backhaul backups with Ethernet and Cellular (4G)

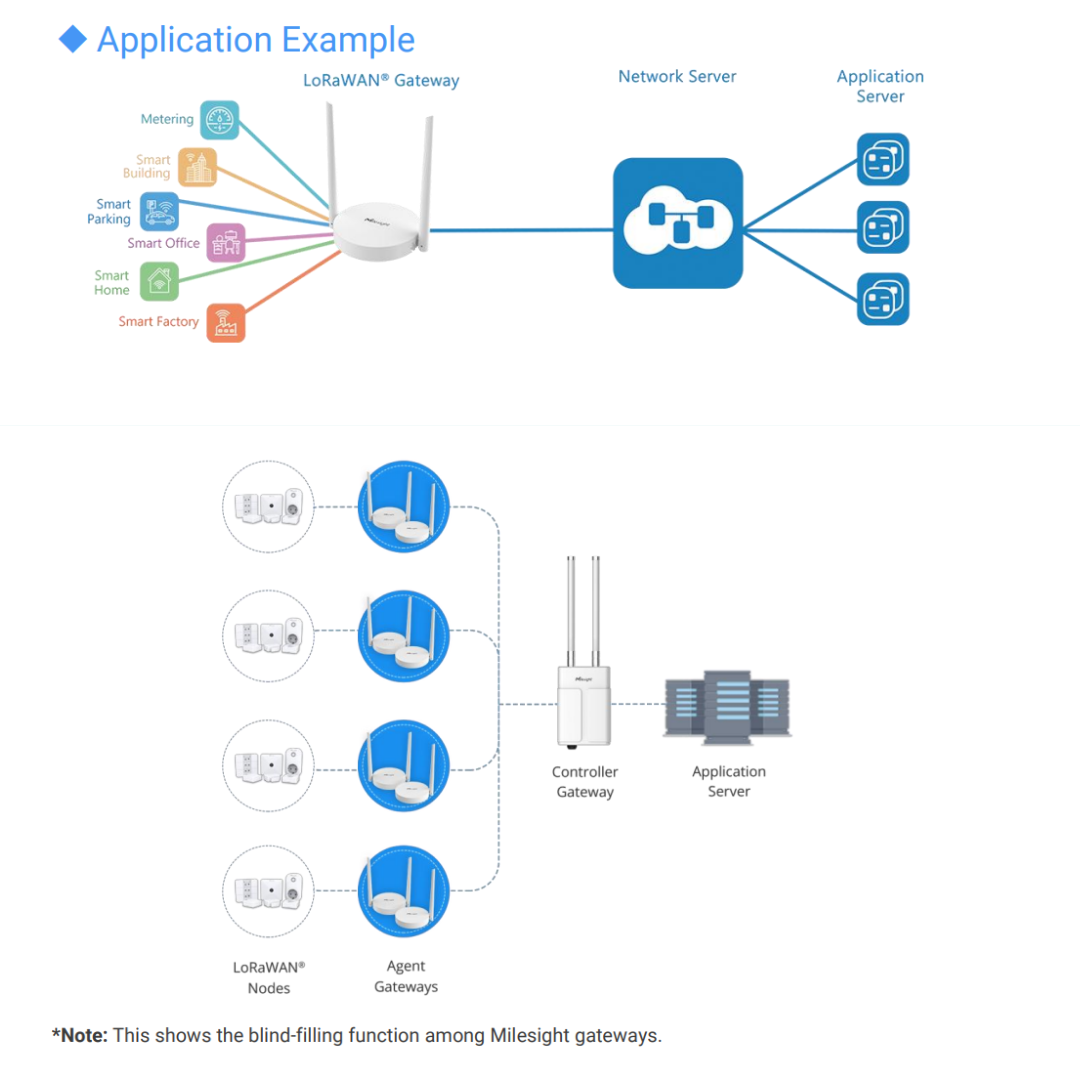

 Cover the blind spot of LoRaWAN® network by transmitting data to Milesight UG56/UG65/UG
67 controller gateway
 High cost performance, suitable for small applications
 Compatible with remote management system for simple deployment even in remote regions
 Compatible with mainstream network servers like The Things Stack, ChirpStack, AWS IoT Core
for LoRaWAN®, etc.  Embedded network server and MQTT API for easily integration
 Specifications

Optional: Cellular (2G & 3G & 4G)
