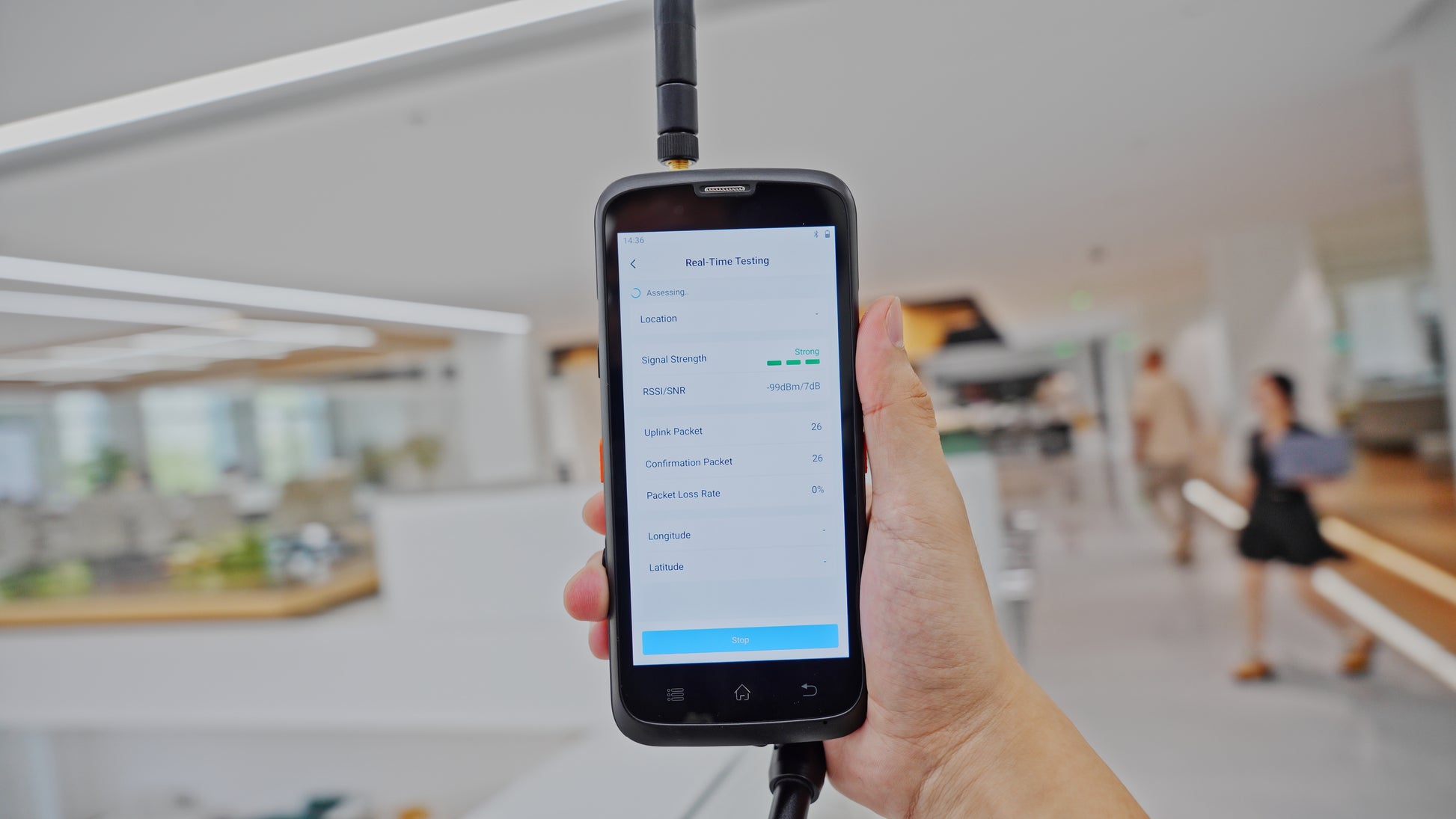

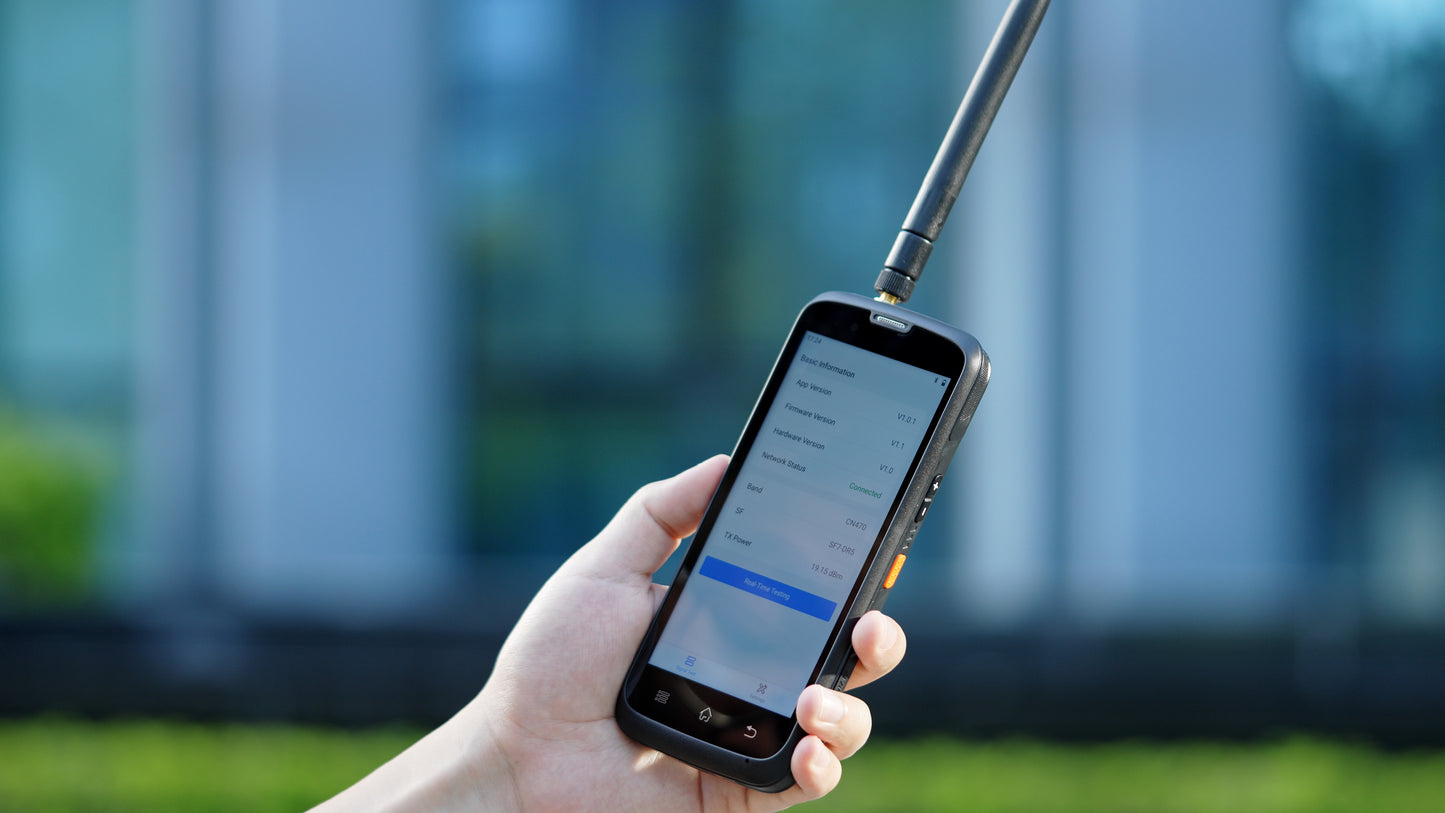

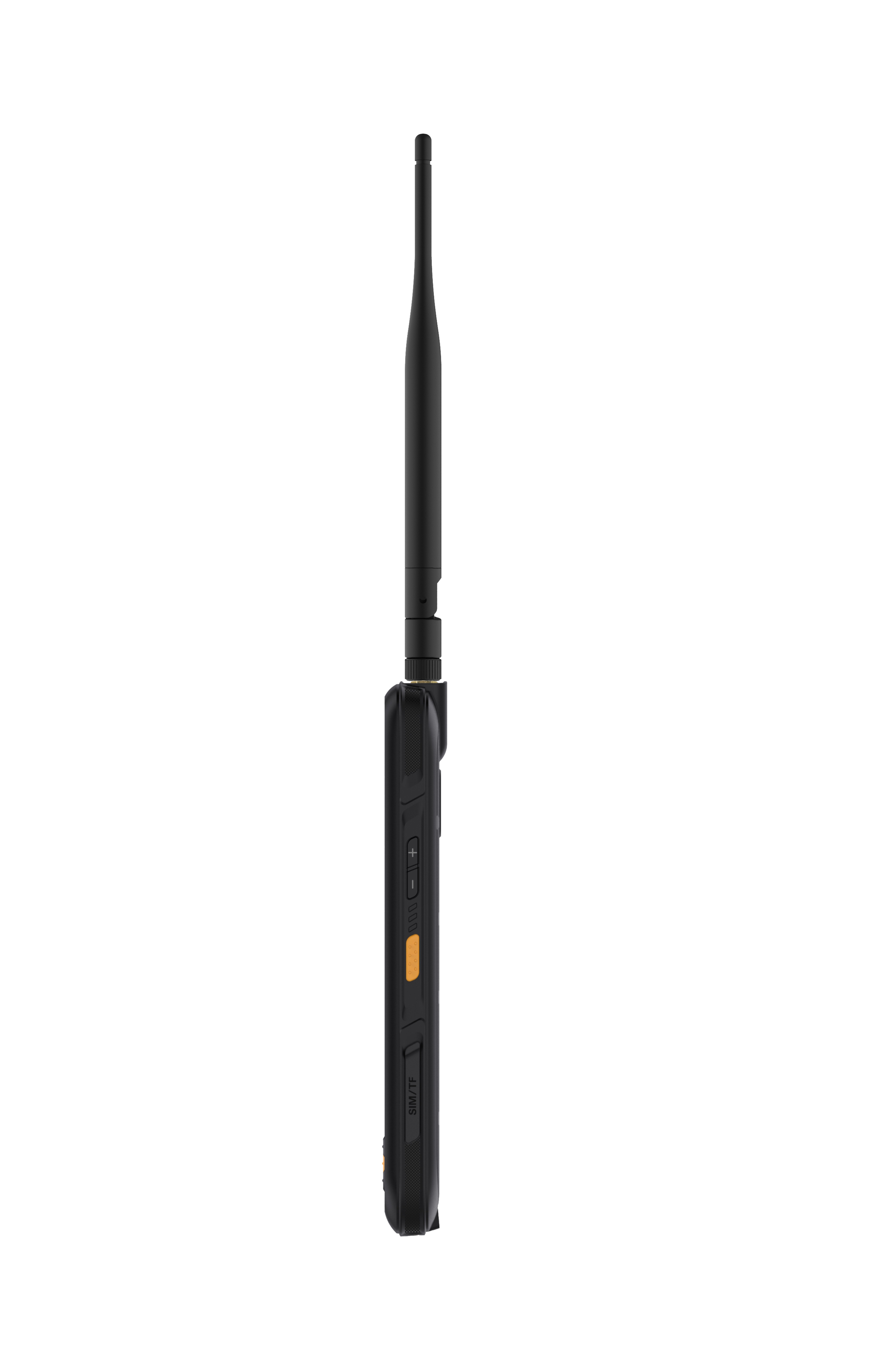

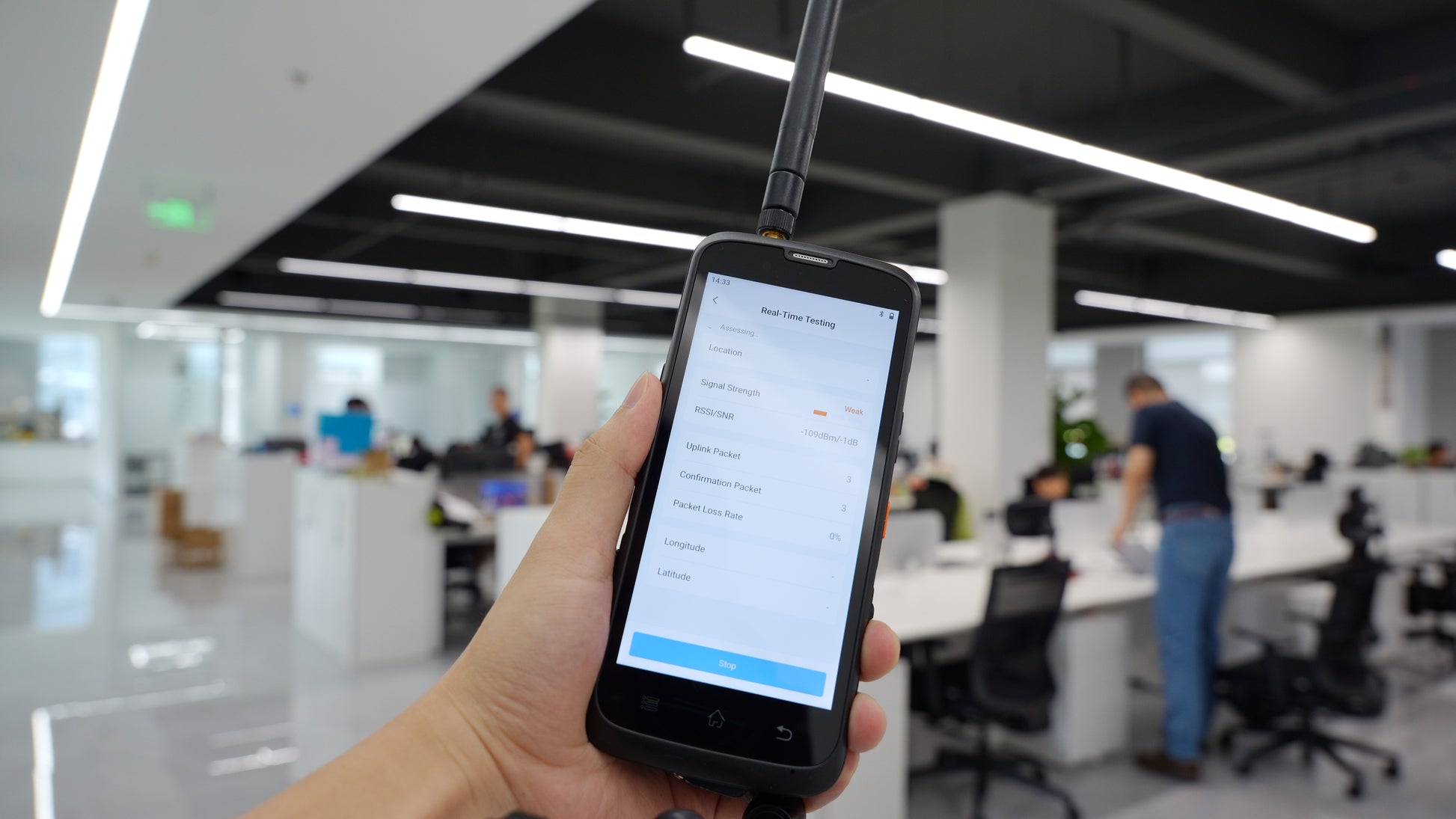

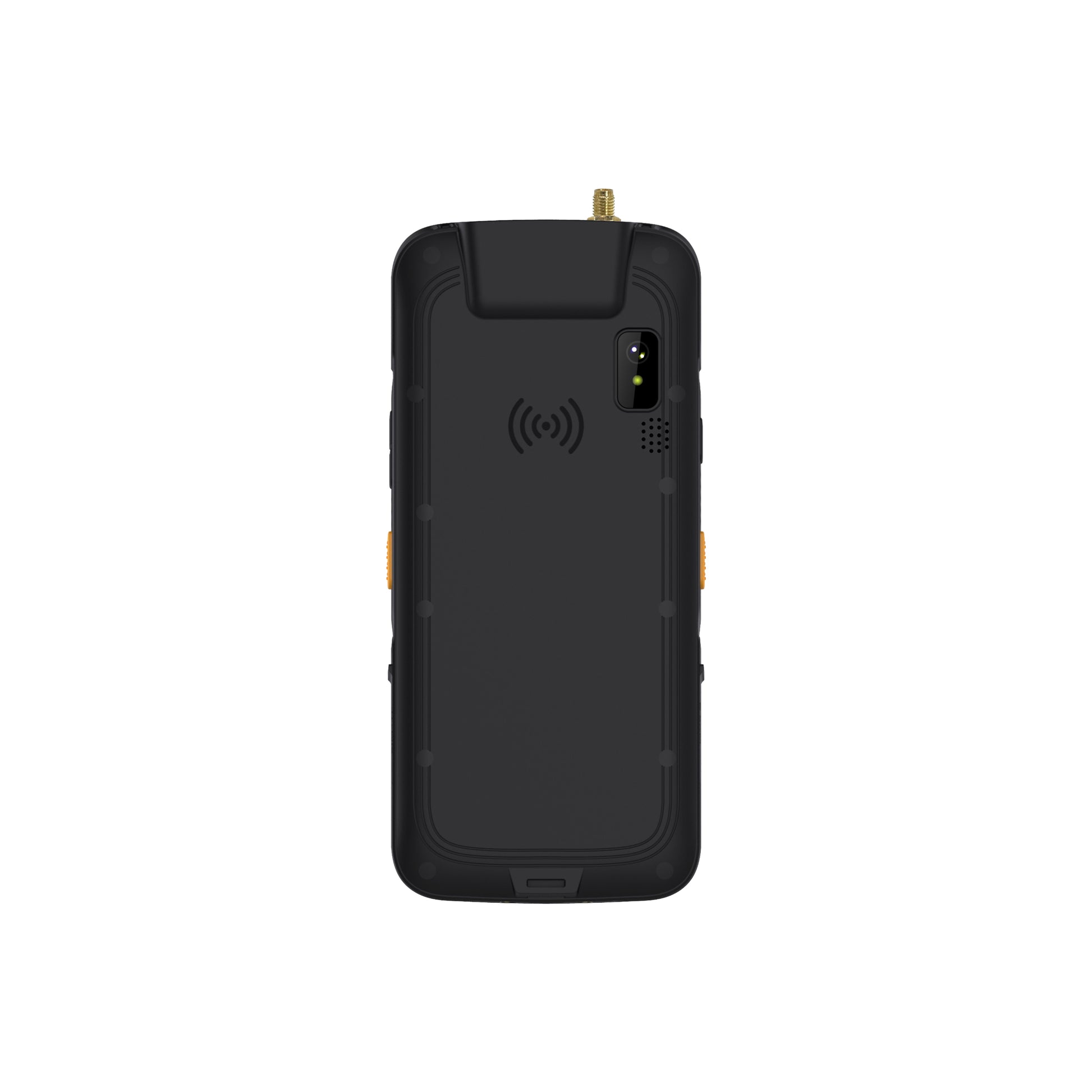

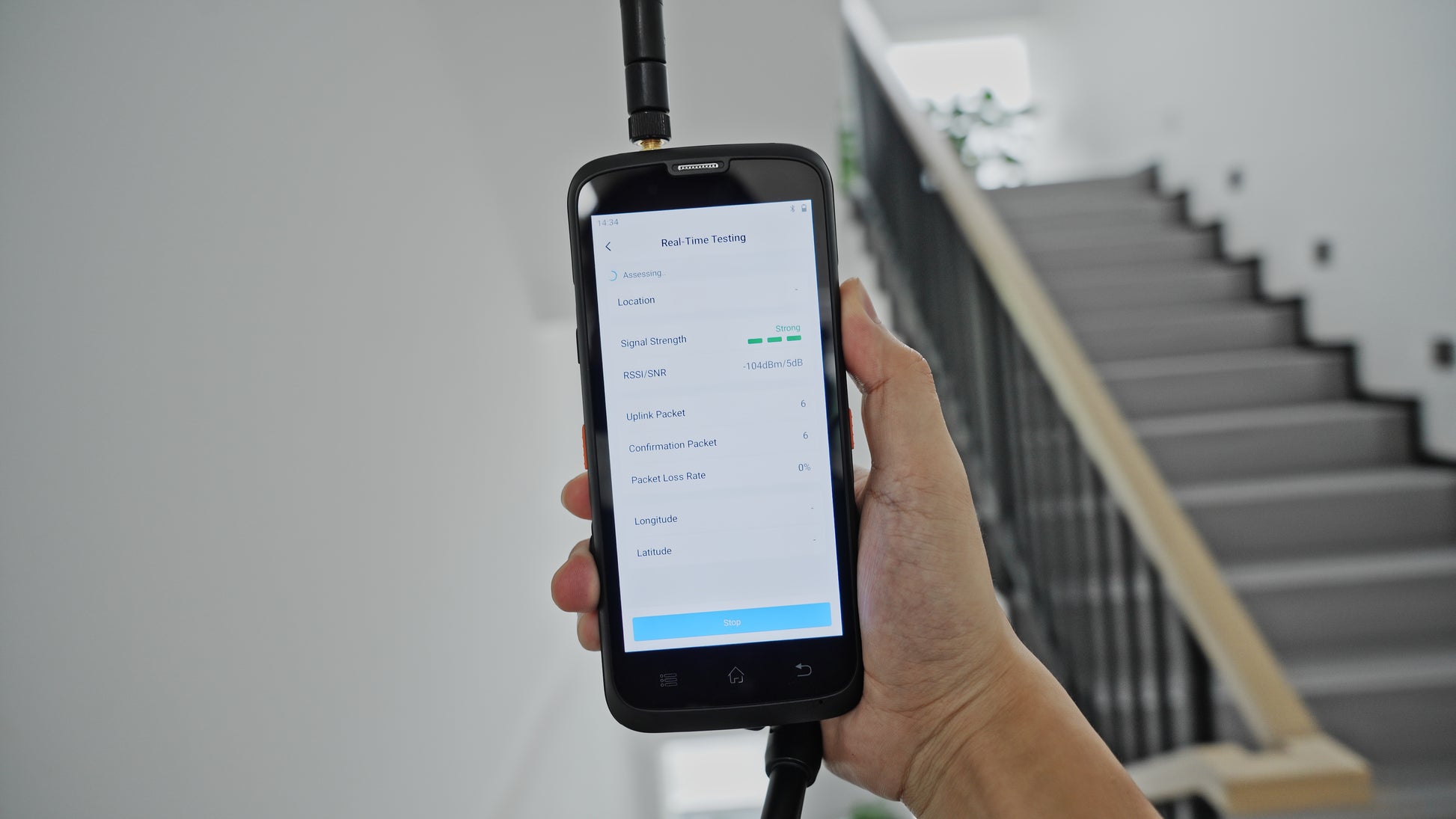

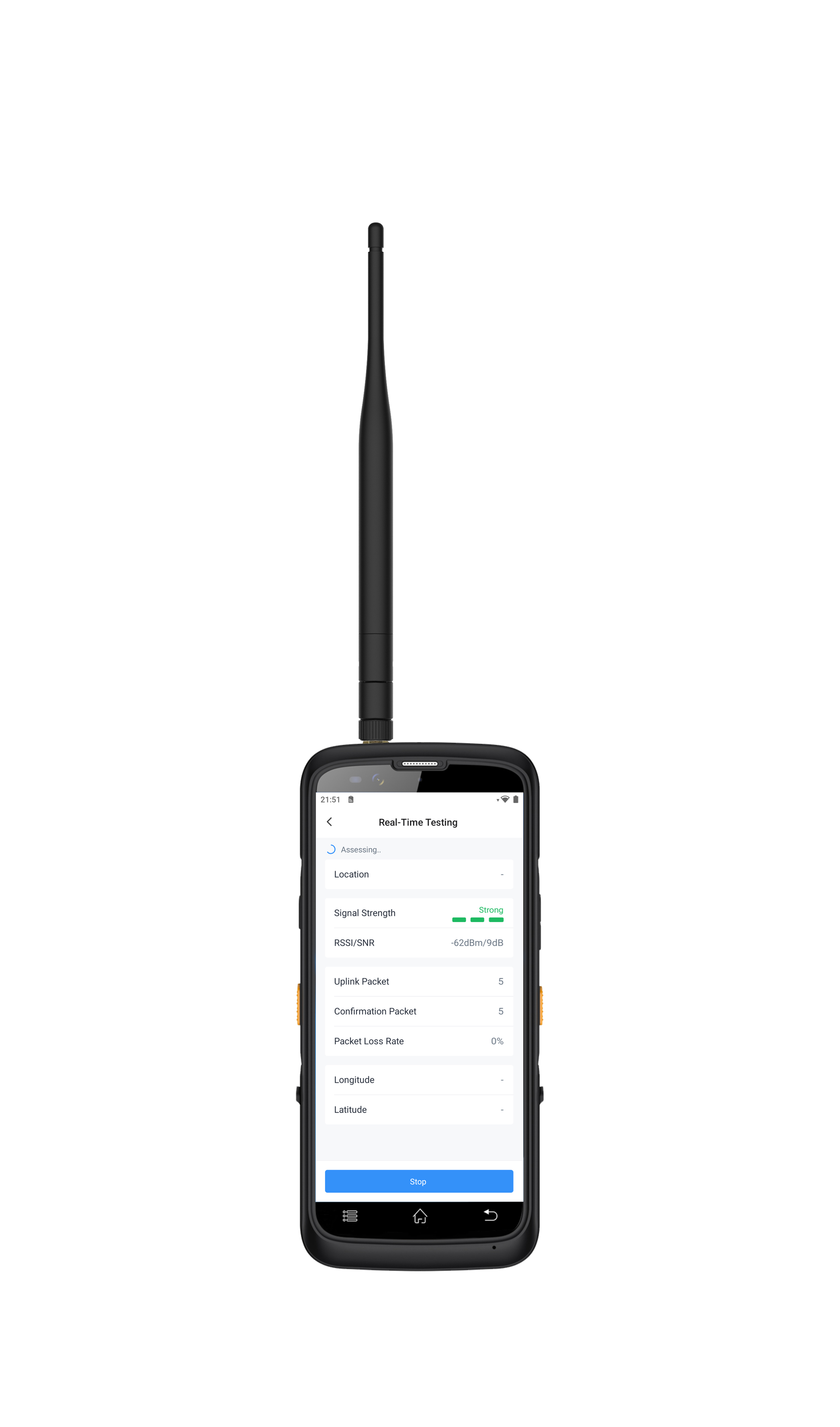

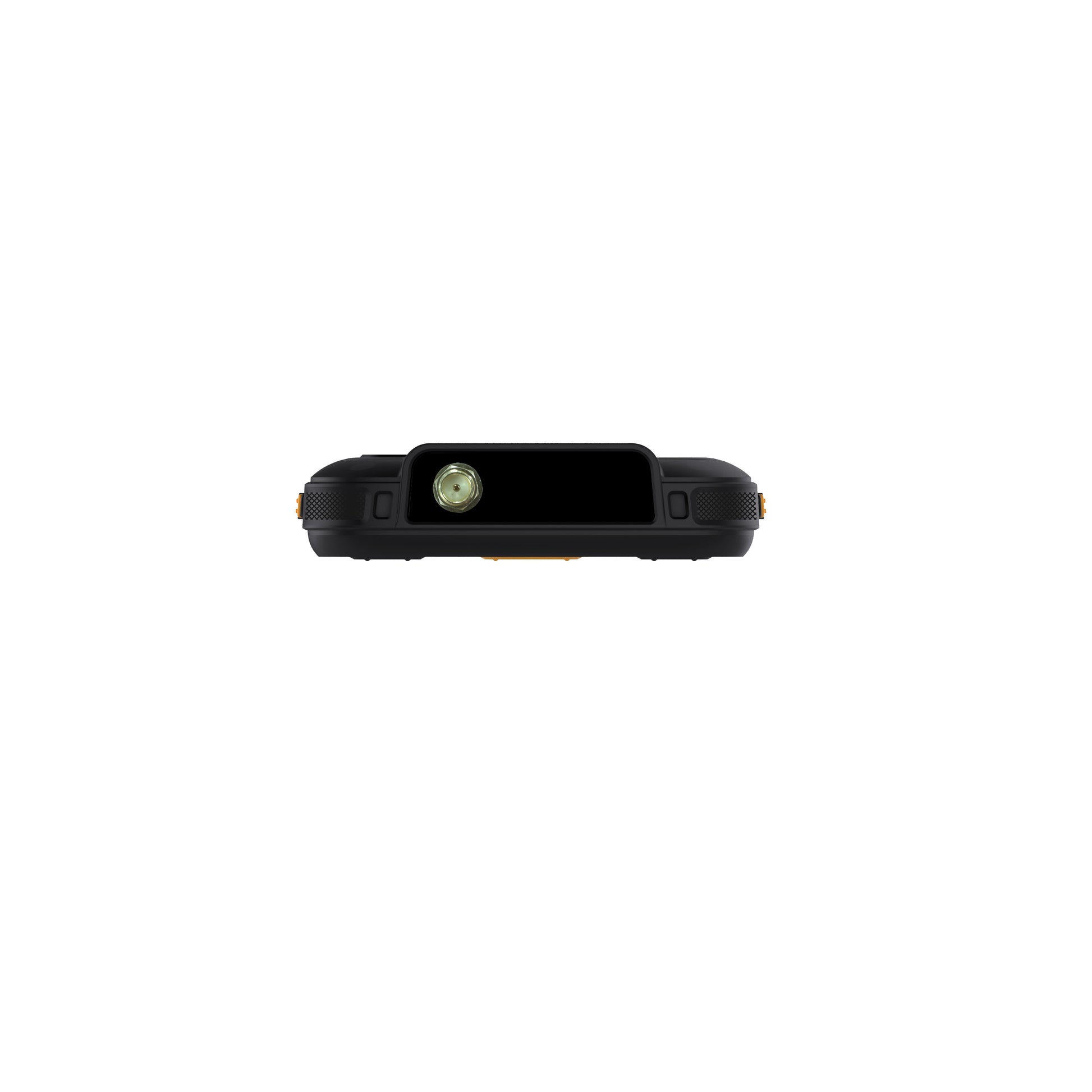

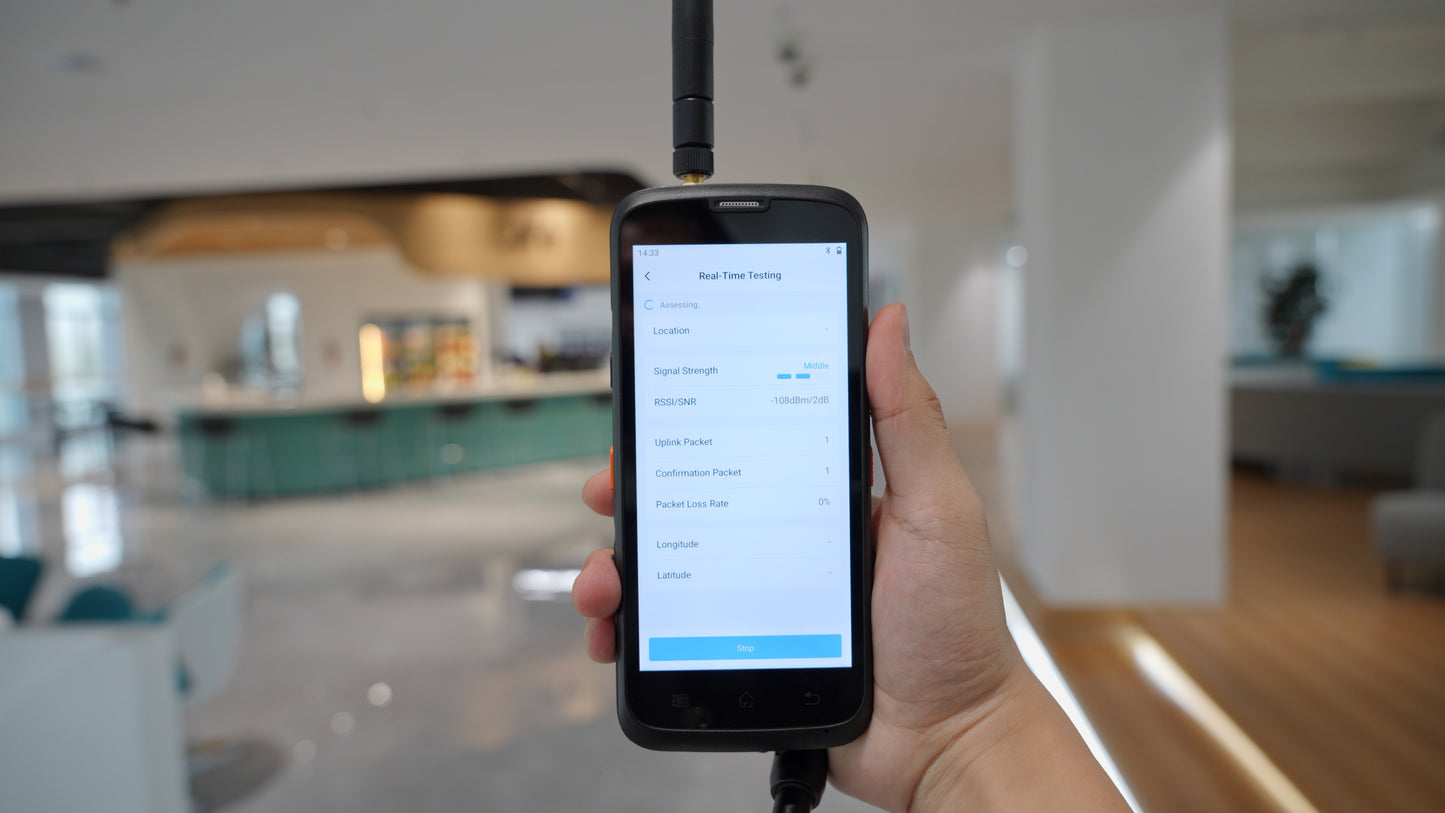

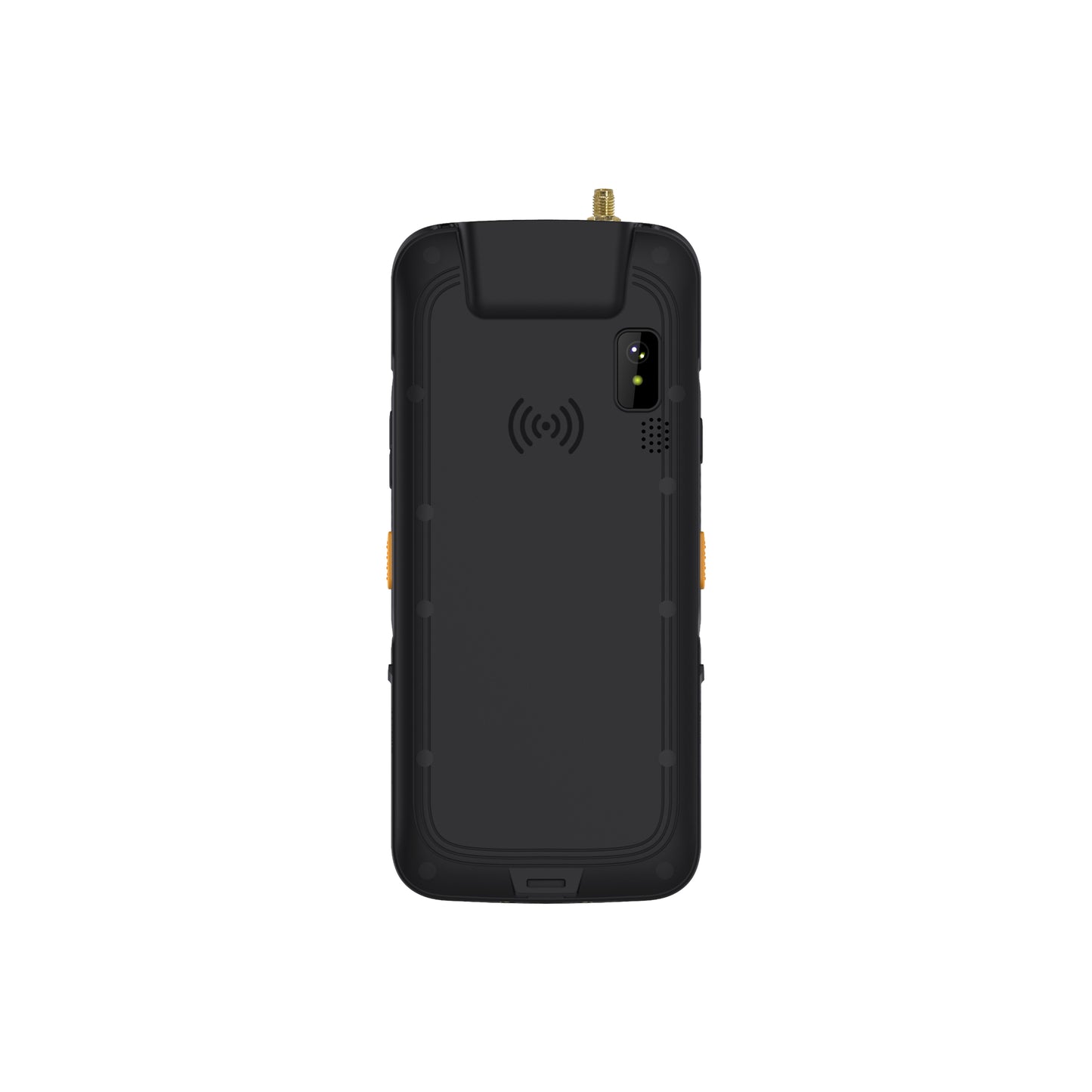

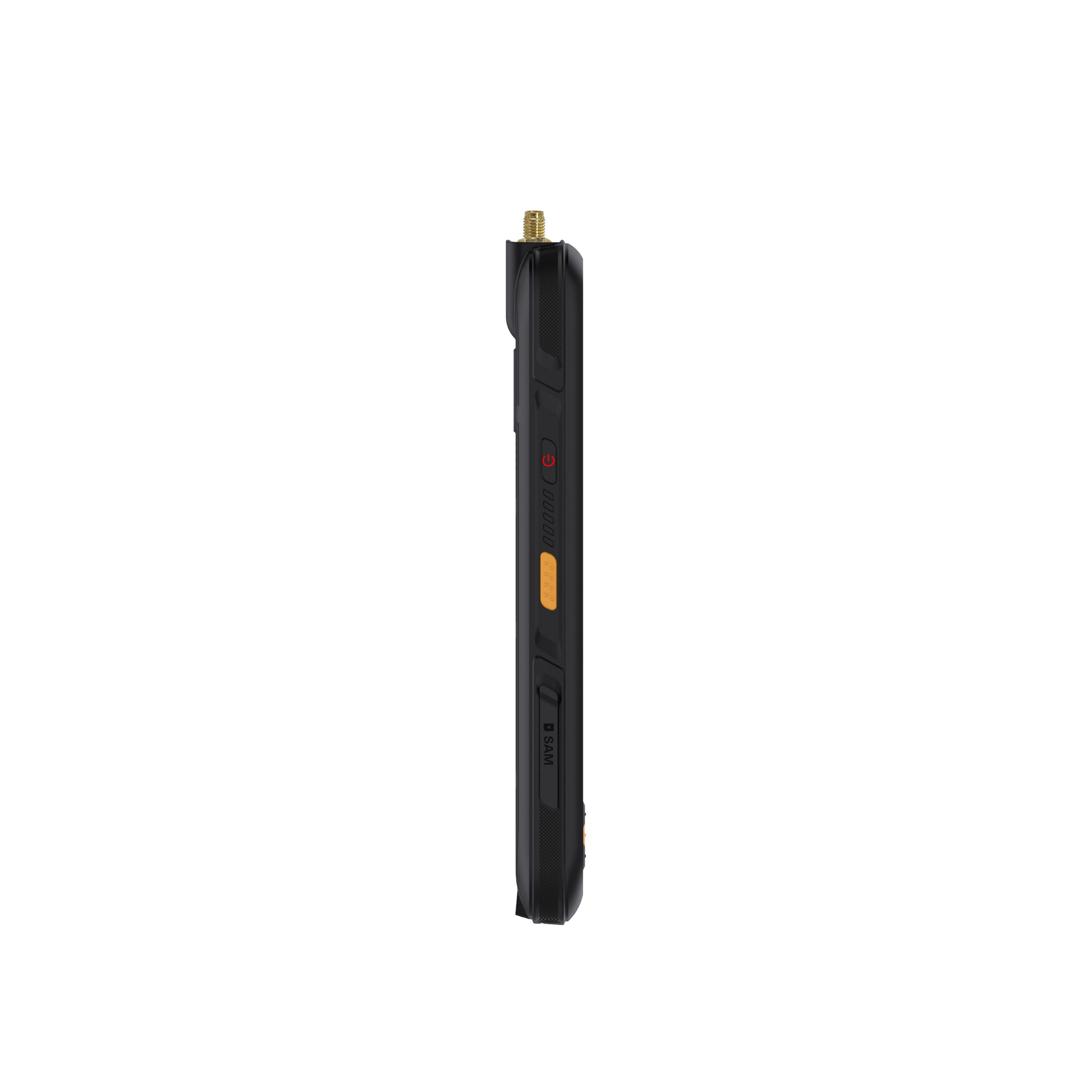

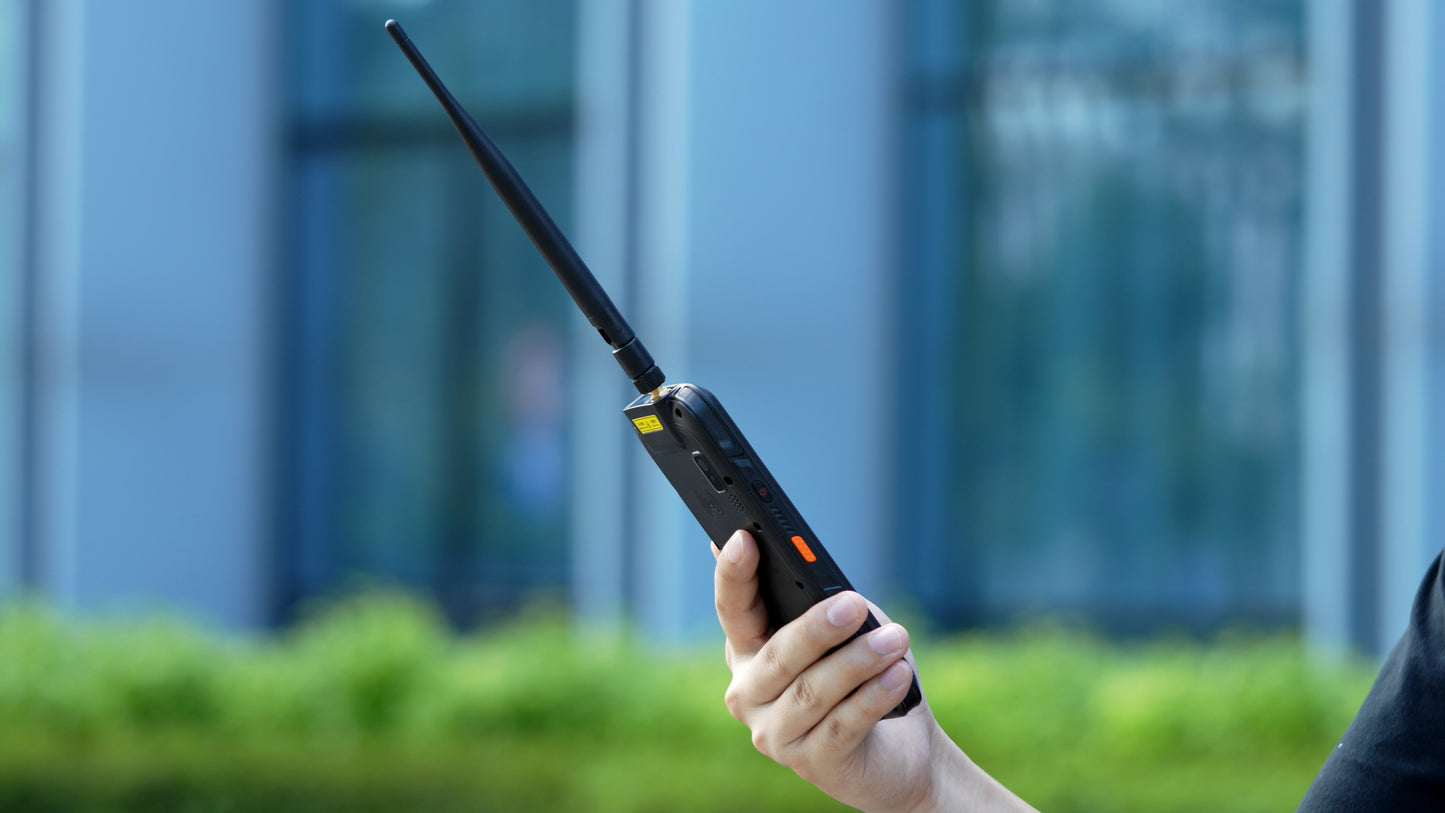

FT101 Field Tester is a portable LoRaWAN® network testing device. With different kinds of antennas, it can support global LoRaWAN® frequencies to record the signal status and packet loss rate to monitor the network status from field and verify the coverage of different LoRaWAN® gateways, to optimize the best places to deploy LoRaWAN® network devices. Equipped with a 5.72-inch touchscreen display, users are able to operate the signal test procedure and monitor the real-time network status friendly. With a built-in battery and type-C port, it can work for 8 hours and support type-C power bank charge to bring the device everywhere easily.
Features
Octa-core processor with Android system and big memory for flexible integration
Built-in one-channel SX1262 LoRaWAN® module for signal test
Support global LoRaWAN® frequencies with different antennas
Compatible with any standard LoRaWAN® gateways and global mainstream network servers
Support to get RSSI and SNR of the gateway and statistics of packet loss rate between gateway and nodes
Support GNSS positioning to record the location of the test field

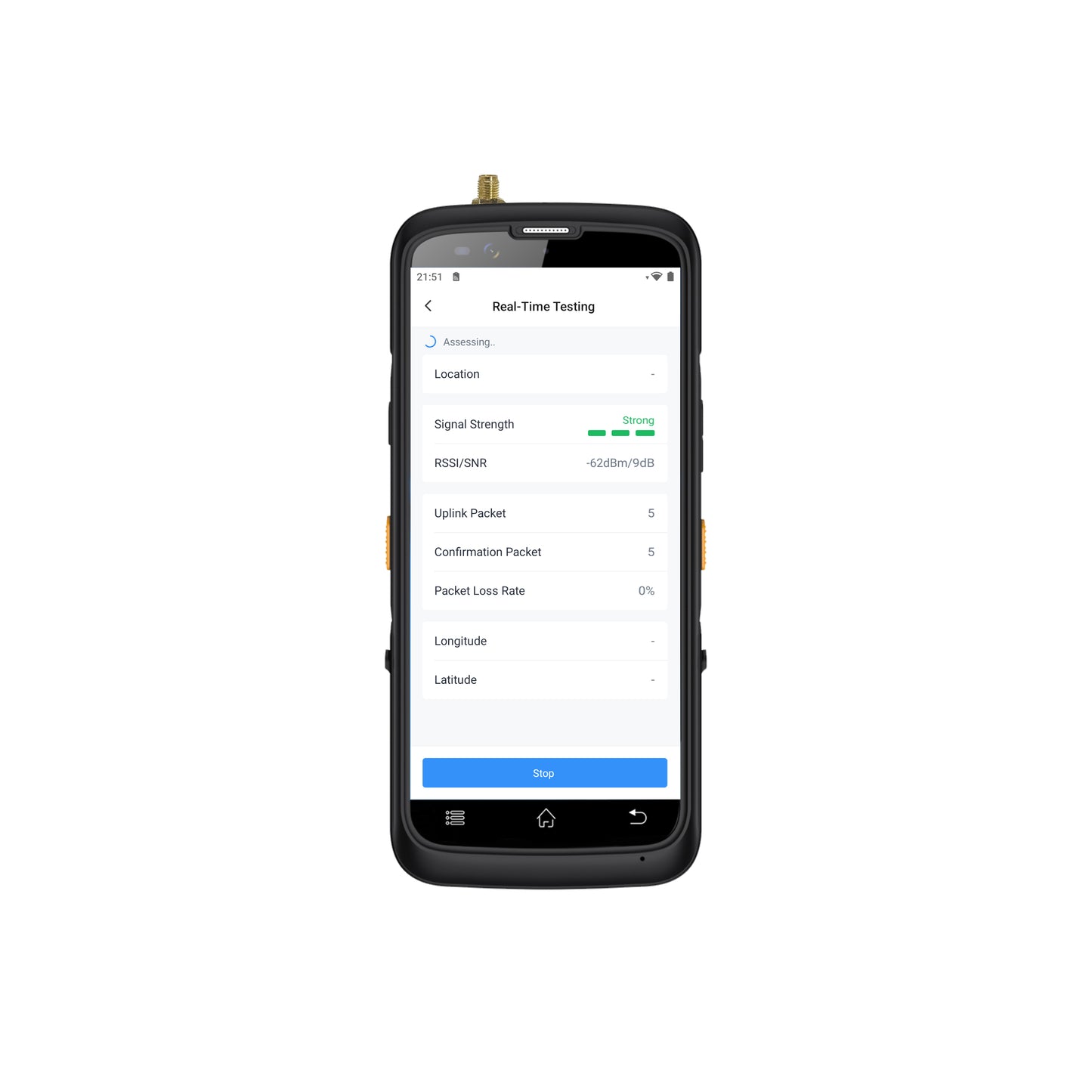

Straightforward user interfaces presented on a 5.72-inch touchable LCD screen
With a built-in rechargeable lithium battery that works for 8 hours

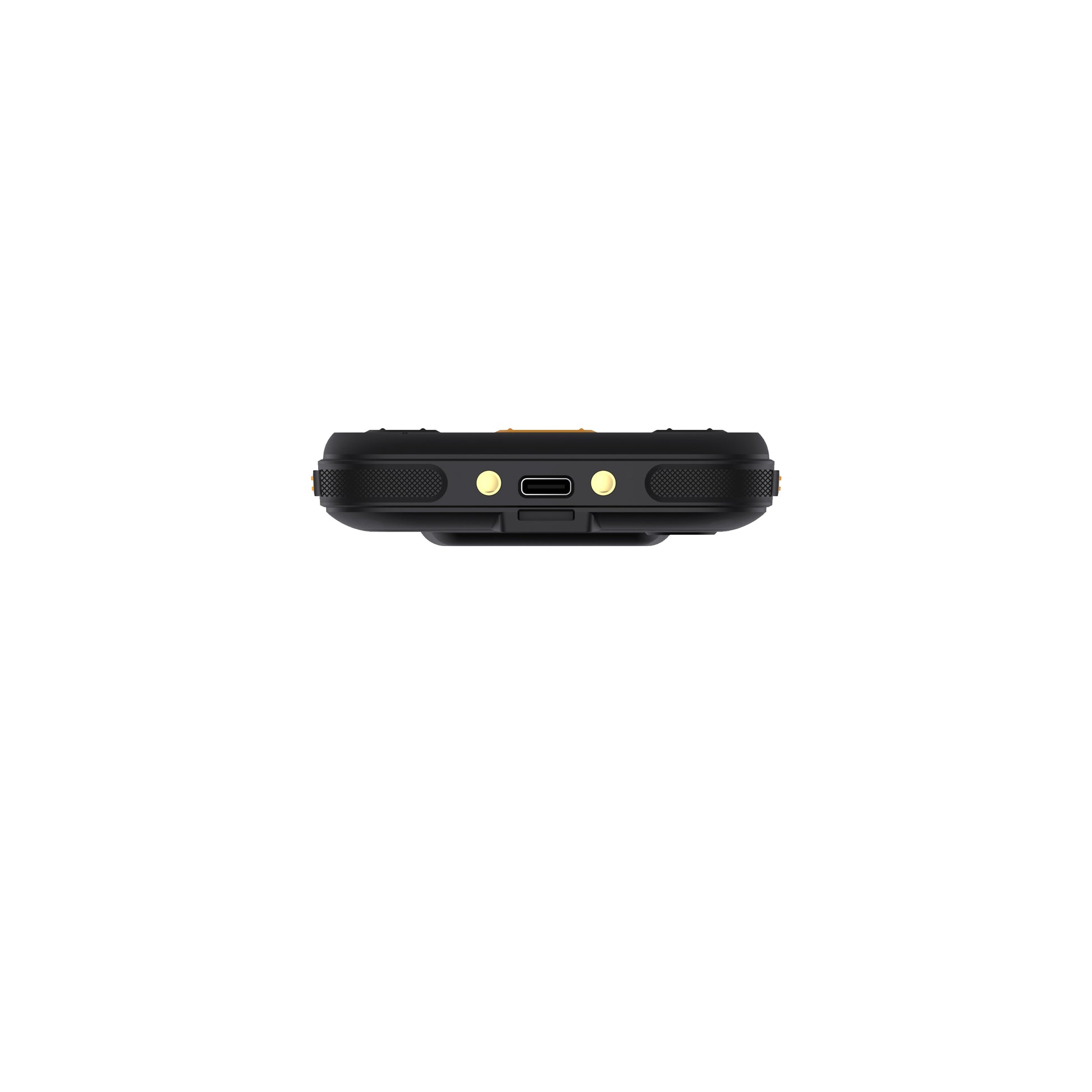

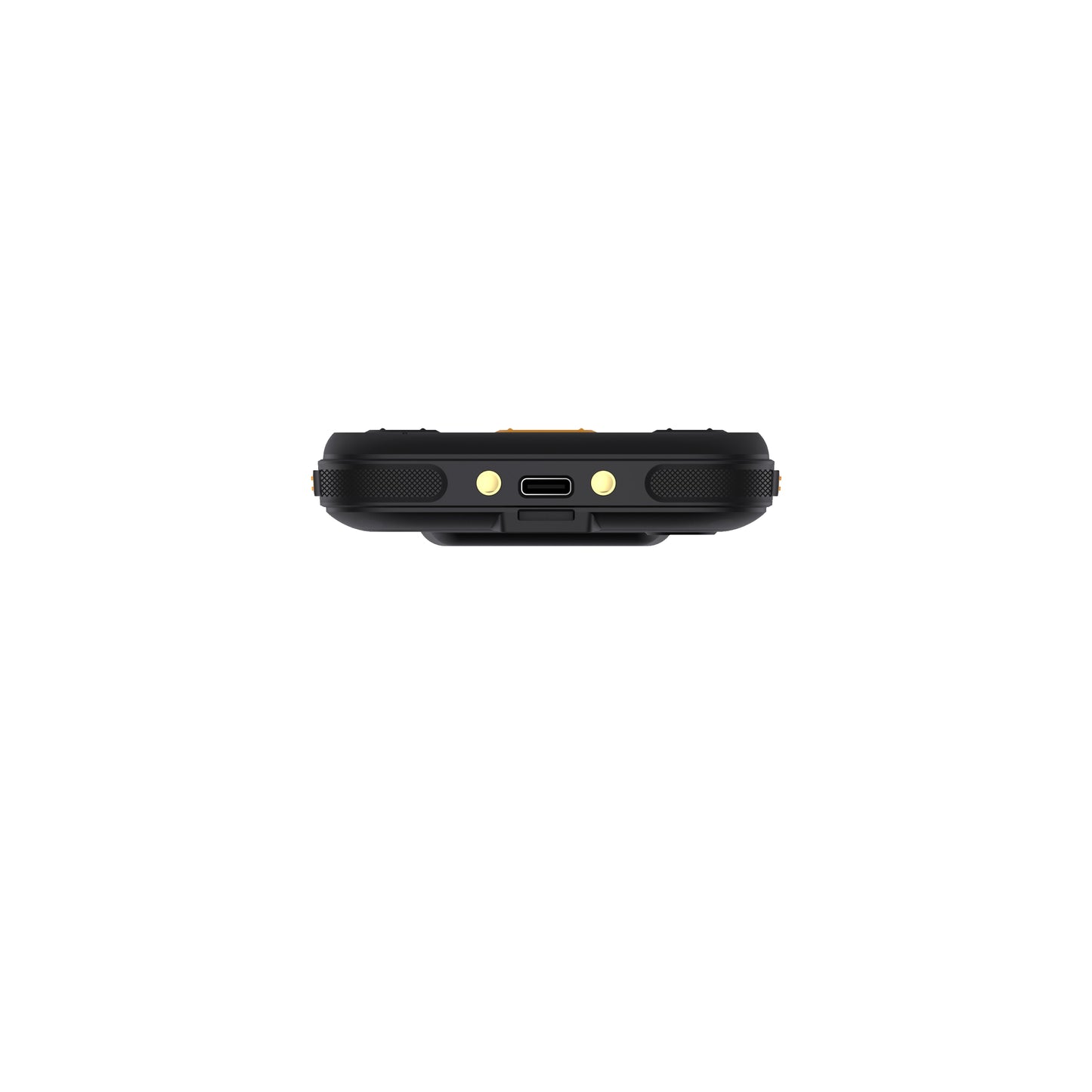

Support real-time data backup and charge through a USB type-C port
Specifications
Display
Resolution
Screen
5.72-inch TP LCD Touch Screen
Resolution
1440 x 720 Pixels
Hardware System
CPU
Octa-core MTK6762, 2 GHz
Memory
4GB RAM + 64GB ROM
Operating System
Android 12.0
NFC
Support ISO/IEC 14443A Protocol, Reading Distance: 1-3cm
